Configuring ConnectViet With Zycoo IPPBX

Configuring a SIP Trunk

Step 1: Create an Account with ConnectViet

Step 2: Add the VoIP Provider Account in the IPPBX

After you get the VoIP provider account, you need to configure the account in your Zycoo IPPBX.

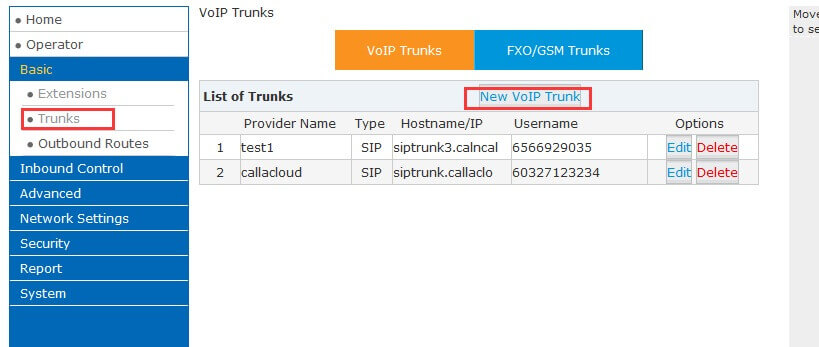

1. Go to Basic > Trunks > VoIP Trunks page and click New VoIP Trunk.

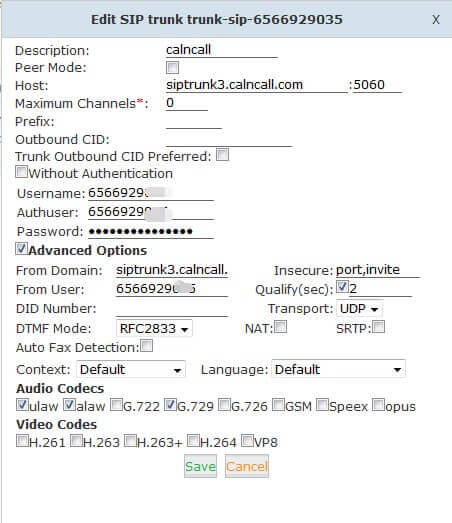

2. Enter the SIP account details in the pop-up window.

Trunk Name: customize your trunk name here.

Hostname/IP: siptrunk.connectviet.com

Domain: siptrunk.connectviet.com

User Name: your ConnectViet Account user name

Authorization Name: the same as the user name

Password: your ConnectViet Account password

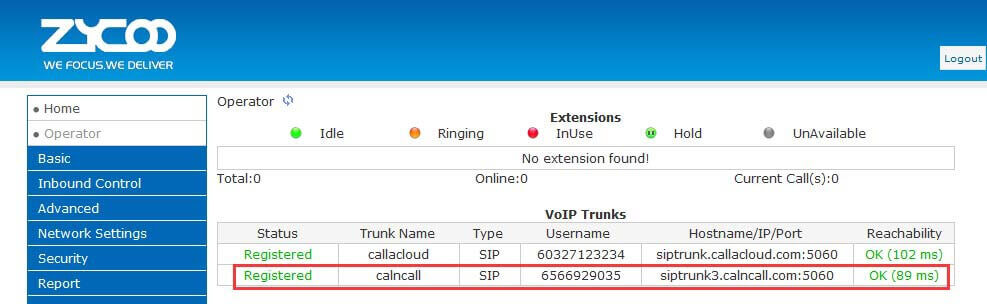

3. Click Save button and Activate Changes. Go to Operator to check if the Service Provider trunk is connected successfully.



Outbound Route with ConnectViet SIP Trunk

To make outbound calls via the new SIP trunk, you need to configure an outbound route for the trunk.

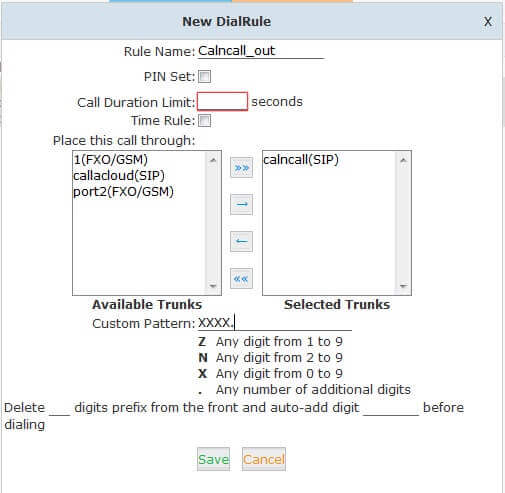

1. Go to Basic > Outbound Routes, click Add DialRules > New Dial rule.

The rule means it can allow over and equal 5digits number for outgoing ,e.g 10000 or other number 85337096

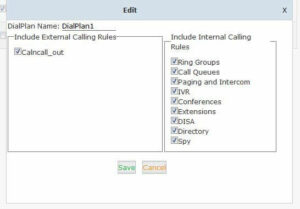

2. Go to Basic > Outbound Routes, click > DialPlans > Dialplan1 > Edit

Tick the rule, then you can call out

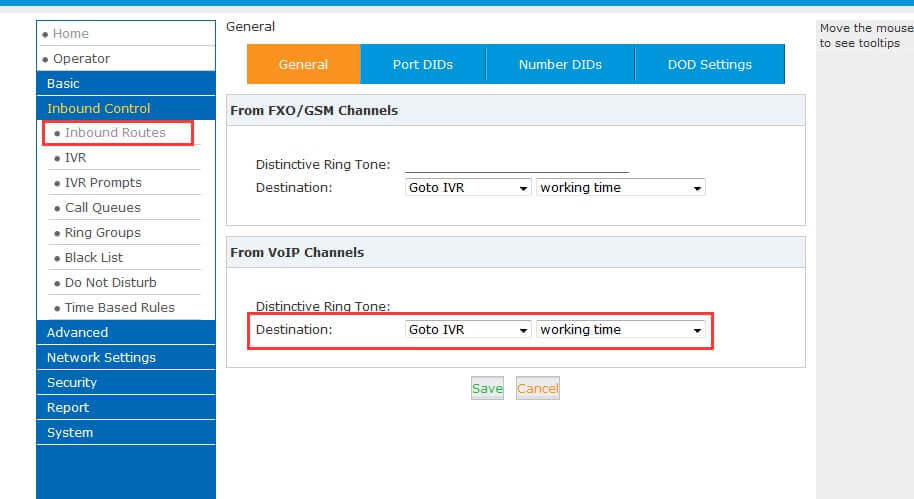

Inbound Route with ConnectViet SIP Trunk

Specify how calls from the ConnectViet SIP trunk should be routed. You need to configure an inbound
route for the SIP trunk.

Then when you make an incoming call you will hear the default prompt.
